Sensor mmWave: Complete Guide to mmWave Sensor Technology and Selection

A sensor mmWave (millimeter-wave sensor) is an electronic device that uses radio frequency electromagnetic waves in the 30–300 GHz range (with wavelengths of 1–10 mm) to detect objects, measure their distance and velocity, and in some cases identify their nature, by emitting a signal and analyzing the reflection. The most common commercial sensor mmWave bands are 24 GHz (24.0–24.25 GHz, used for motion detection and basic radar applications), 60 GHz (57–64 GHz, used for indoor presence detection with micro-Doppler breathing detection), and 77 GHz (76–81 GHz, used for automotive radar and long-range industrial applications). A sensor mmWave works by emitting a frequency-modulated continuous wave (FMCW) chirp that sweeps across a defined bandwidth, and then analyzing the reflected signal to extract the range, velocity, and angular position of every target in the detection zone. The technology has become the dominant sensing modality for human presence detection in hotel rooms, offices, healthcare facilities, and residential smart homes, displacing the legacy passive infrared (PIR) motion sensor in any application where the occupant may be still for extended periods.

This guide provides a comprehensive overview of the sensor mmWave, covering the technology, the frequency bands, the key performance characteristics, the major applications, and the selection criteria. Whether you are an engineer designing a presence detection system, a procurement specialist sourcing sensors, or a consumer trying to understand why a sensor mmWave is more accurate than a PIR sensor, this guide will give you a clear foundation.

Sensor mmWave: The Technology

The technology behind a sensor mmWave is based on the principles of radar, adapted for the millimeter-wave frequency range.

Sensor mmWave: How It Works

A sensor mmWave works by emitting a signal and analyzing the reflected signal. The basic process is:

1. Signal emission: the sensor's transmitter emits a signal (typically an FMCW chirp) that sweeps across a defined frequency band
2. Signal reflection: the signal reflects off objects in the detection zone
3. Signal reception: the sensor's receiver detects the reflected signal
4. Signal analysis: the sensor's processor analyzes the reflected signal to determine the range, velocity, and angular position of each object

Sensor mmWave: FMCW Processing

The most common signal used in commercial sensor mmWave products is the frequency-modulated continuous wave (FMCW) chirp. In an FMCW chirp, the frequency of the transmitted signal sweeps linearly across a defined bandwidth over a short period.

For a 60 GHz sensor mmWave, the chirp sweeps across the 57–64 GHz band, a 7 GHz bandwidth. The range resolution — the ability to distinguish two objects at different ranges — is approximately 2.1 cm. The velocity resolution — the ability to measure the velocity of an object — is approximately 0.05 m/s.

Sensor mmWave: MIMO Antenna Arrays

Modern sensor mmWave products use multiple-input multiple-output (MIMO) antenna arrays to determine the angular position of targets. A 2×2 MIMO array provides basic angular resolution. A 3×3 MIMO array provides finer angular resolution and the ability to resolve multiple targets.

For a ceiling-mounted presence sensor, a typical antenna array is a 2×2 or 3×3 MIMO configuration that provides a field of view of approximately ±60° azimuth and ±40° elevation.

Sensor mmWave: Micro-Doppler Analysis

The micro-Doppler effect is the phenomenon where the micro-motion of parts of a target produces distinctive Doppler signatures. In human presence detection, the most important micro-Doppler signature is the breathing signature: the periodic chest wall motion at 0.2–0.5 Hz produces a Doppler modulation that is distinct from the background noise and from the Doppler signatures of inanimate objects.

A well-designed 60 GHz sensor mmWave uses signal processing techniques to extract the breathing signature from the radar return, distinguish it from background noise, and use it as a positive indicator of human presence. The result is a sensor that can reliably confirm the presence of a sleeping adult at 4 m with a true positive rate above 99% in controlled testing.

Sensor mmWave: Frequency Bands

The sensor mmWave market uses three major frequency bands, each with different characteristics.

Sensor mmWave: 24 GHz Band

The 24 GHz band (24.0–24.25 GHz narrowband ISM) is the oldest and most mature sensor mmWave band. The narrowband ISM allocation provides 250 MHz of bandwidth, which is sufficient for motion detection and basic range resolution.

The 24 GHz sensor mmWave is suitable for cost-sensitive applications where stationary-occupant detection is not required, such as automatic door openers, security motion sensors, and basic occupancy-based lighting control.

Sensor mmWave: 60 GHz Band

The 60 GHz band (57–64 GHz) is now the dominant band for indoor presence detection. The 7 GHz of bandwidth enables 2.1 cm range resolution and micro-Doppler detection of human breathing at 0.2–0.5 Hz from ranges of 6–8 meters.

The 60 GHz sensor mmWave is the default choice for hotel rooms, offices, healthcare facilities, and residential smart homes, where the ability to detect stationary occupants is essential.

Sensor mmWave: 77 GHz Band

The 77 GHz band (76–81 GHz) is primarily an automotive radar band, used for adaptive cruise control, collision avoidance, and other advanced driver assistance systems. The 5 GHz of bandwidth enables 3 cm range resolution, and the 3.9 mm wavelength allows for very compact antennas.

The 77 GHz sensor mmWave is suitable for long-range applications (20–30 m) that require fine angular resolution, such as warehouse zone detection and large-venue occupancy tracking.

Band	Frequency	Bandwidth	Range resolution	Wavelength	Primary use
24 GHz narrowband	24.0–24.25 GHz	250 MHz	0.6 m	12.5 mm	Motion-only, cost-sensitive
60 GHz	57–64 GHz	7 GHz	2.1 cm	5.0 mm	Indoor presence detection (default)
77 GHz	76–81 GHz	5 GHz	3 cm	3.9 mm	Automotive, industrial long-range

Sensor mmWave: Key Performance Characteristics

The performance of a sensor mmWave is characterized by several key metrics.

Sensor mmWave: Stationary-Occupant Detection

The stationary-occupant true positive rate (TPR) is the percentage of time that a stationary human occupant is correctly reported as present. For a 60 GHz sensor mmWave, the TPR is above 99% in controlled testing and above 95% in real-world deployment. This is the key capability that distinguishes a sensor mmWave from a PIR sensor.

Sensor mmWave: False Positive Rate

The false positive rate is the percentage of time the sensor reports presence when the room is actually empty. For a well-designed 60 GHz sensor mmWave, the FPR is below 1% over a 24-hour period.

Sensor mmWave: Detection Range

The detection range of a 60 GHz sensor mmWave is 6–8 m for stationary occupants and 8–12 m for moving occupants when ceiling-mounted at 2.5–3.0 m.

Sensor mmWave: Detection Latency

The detection latency is the time between an occupant entering the detection zone and the sensor reporting the change. For a 60 GHz sensor mmWave, the latency is typically 0.5–3 seconds.

Sensor mmWave: Applications

A sensor mmWave is deployed in a wide range of applications.

Sensor mmWave: Hotel Room Presence Detection

Hotel rooms are the canonical application for 60 GHz sensor mmWave. A ceiling-mounted 60 GHz sensor can reliably detect whether a guest is in the room throughout their stay, including when they are sleeping, and feeds the occupancy data to the building management system for housekeeping coordination and the HVAC system for energy management.

Sensor mmWave: Office and Conference Room Sensing

Offices use 60 GHz sensor mmWave for per-room HVAC and lighting control, conference room availability detection, and space utilization analytics.

Sensor mmWave: Healthcare and Patient Room Sensing

Healthcare facilities use 60 GHz sensor mmWave for fall detection, bed-exit alerting, and occupancy-based environmental control. The privacy profile of mmWave radar (no images, non-invasive) makes it suitable for deployment in private spaces.

Sensor mmWave: Residential Smart Home Sensing

Residential smart homes use 60 GHz sensor mmWave for occupancy-based lighting, HVAC control, and security monitoring.

Sensor mmWave: Automotive Radar

The 77 GHz band is the primary frequency for automotive radar, used for adaptive cruise control, collision avoidance, and other advanced driver assistance systems.

Sensor mmWave: Industrial Sensing

Sensor mmWave is used in industrial applications for level sensing, conveyor monitoring, and robotic collision avoidance.

Sensor mmWave: How It Differs From Other Technologies

A sensor mmWave is one of several sensing technologies used for presence detection.

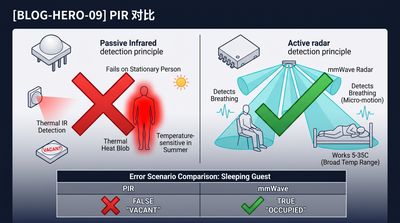

Sensor mmWave vs PIR

PIR sensors are cheaper and consume less power, but they cannot detect stationary occupants. For applications where the occupant may be still for extended periods, a sensor mmWave is the right choice.

Sensor mmWave vs Ultrasonic

Ultrasonic sensors are less expensive than a sensor mmWave but have limited accuracy in distinguishing humans from other objects, and they cannot reliably detect stationary humans.

Sensor mmWave vs Computer Vision

Computer vision sensors offer the highest person-counting accuracy but raise significant privacy concerns in hotel rooms, restrooms, healthcare facilities, and other private spaces. A sensor mmWave is the right choice for privacy-sensitive deployments.

Sensor mmWave: Privacy and Safety

The privacy and safety profile of a 60 GHz sensor mmWave is excellent.

Sensor mmWave: Privacy

A 60 GHz sensor mmWave produces only point cloud data, not images. The 60 GHz signal does not propagate between rooms (due to the high oxygen absorption and the strong attenuation by drywall), which provides a natural privacy barrier.

Sensor mmWave: Safety

A 60 GHz sensor mmWave operates at very low radiated power (typically less than 10 mW, well below the output power of a WiFi router). The international safety standards for radio frequency exposure are satisfied by all commercial sensor mmWave products on the market.

Sensor mmWave: Selection Criteria

Selecting the right sensor mmWave for a specific application requires evaluating several criteria.

Sensor mmWave: Frequency Band

For indoor presence detection, 60 GHz is the default. For long-range industrial, 77 GHz may be appropriate. For cost-sensitive motion-only, 24 GHz may be sufficient.

Sensor mmWave: Form Factor

For most applications, a ceiling-mounted sensor (70 mm diameter ceiling puck) is the right choice. For corridors and entryways, a wall-mounted sensor may be preferred.

Sensor mmWave: Connectivity

The connectivity should match the existing infrastructure and the integration requirements. For hotel deployments, Zigbee is the most common. For office deployments, WiFi or PoE with BACnet is common. For residential deployments, Matter or Zigbee is the most common.

Sensor mmWave: Certifications

The sensor mmWave should carry the required certifications for the target market: FCC, CE, RoHS, and any regional certifications.

Sensor mmWave: Future Trends

The sensor mmWave market is evolving rapidly, driven by several trends:

• Single-chip integration: the integration of mmWave transceivers into single-chip solutions is reducing cost and enabling smaller form factors
• On-device machine learning: the increasing use of on-device ML is improving detection accuracy and enabling new capabilities
• Multi-sensor fusion: the convergence of mmWave with other sensing modalities is enabling new applications
• Matter adoption: the emergence of Matter is providing cross-ecosystem compatibility
• Price compression: increased competition is driving down prices

Sensor mmWave: Final Recommendation

A sensor mmWave is a mature, reliable, and widely deployed technology that has become the default choice for presence detection in hotel rooms, offices, healthcare facilities, and residential smart homes. The 60 GHz band is the default frequency for most indoor applications, providing reliable stationary-occupant detection, an excellent privacy profile, and a compact form factor.

For a procurement team or a consumer selecting a sensor mmWave, the right approach is to start with a clear definition of the application requirements, then evaluate the available sensors against those requirements, then select a vendor with a proven track record in the target vertical, and then execute a pilot before committing to a full deployment. The recommended products for most applications are the ceiling-presence-sensor-zigbee, ceiling-presence-sensor-wifi, and ceiling-presence-sensor-matter from vendors with strong product portfolios and proven deployment track records.

With the right sensor mmWave, correctly installed and integrated, the sensor can deliver a level of occupancy awareness that is impossible to achieve with PIR-based motion sensors, and can justify the higher unit cost through improved energy efficiency, better occupant experience, and more accurate occupancy data for downstream analytics.
